Drum Lugs and Hardware

We offer a selection of high quality lugs to complete your custom build. All lugs come with gaskets. Stainless steel socket cap screws, washers and lock washers are available.

Lugs are currently available in chrome and black nickel.



Arch 2 Die Cast Lugs

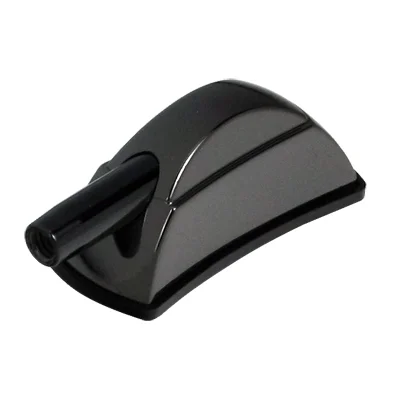

Arch 2 lugs are a high quality cast lug, available in short and long snare sizes, as well as a small size for toms and bass drums. The bass drum lugs are identical to the tom lugs, but feature a thicker gasket to raise them to the correct height. The tension rod received is machined from heavy material and is held in place with a set screw. The double end swivel nuts move independently of each other. You will not find a higher quality cast lug any where.

Available in chrome and black nickel.

Available Models:

  • Double End Short: Total length is 2.75". Hole spacing is 2.25". Requires a 0.25" hole.

  • Double End Long: Total length is 4". Hole spacing is 2.25". Requires a 0.25" hole.

  • Single End Tom: Hole spacing is 1.5". Requires a 0.25" hole.

  • Single End Bass: Hole spacing is 1.5". Requires a 0.25" hole.

Tube Lugs

These high quality double end tube lugs are available in two lengths for snare drums. Tube lugs come with both .032" and .064" gaskets for maximum height adjustment options to eliminate tension rod splay that can cause binding.

Available in chrome and black nickel.

Available Models:

  • 3.5" Double End Snare: Requires a 0.25" hole.

  • 2 3/16" Double End Snare: Requires a 0.25" hole.

Machined Single Point Lugs

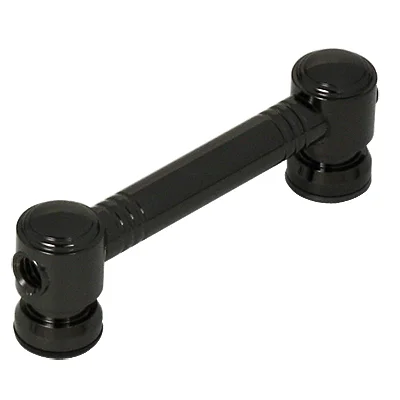

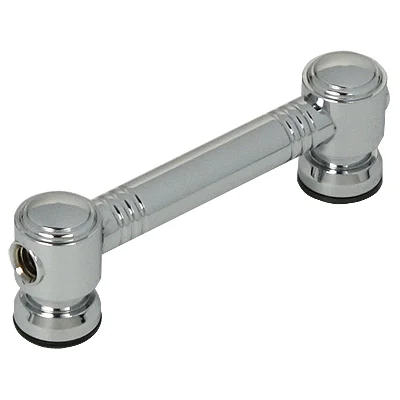

These single point lugs are available in a double-ended version for snare drums, and a single-ended version for toms and bass drums. The double end swivel nuts move independently of each other.

Available in chrome and black nickel.

Available Models:

  • Double End Snare: Total length is 2 5/8". Requires a 5/16" hole.

  • Single End Tom: Requires a 5/16" hole.

  • Single End Bass: Requires a 5/16" hole.
